Description
- The highest flow vs pressure performance.
- Maximum use of the oxygen volume of the cylinder.
- Maximum output stability of pressure and flow over the entire cylinder pressure range.
- Precise flow rates and safe overpressure flow valve with high evacuation capacity (< 10 bar), capable of releasing pressure in the event of any failure.
- High stability and accuracy of output regulation= 4.5 ± 0.5 bar.
- Available in various configurations for cylinder fittings (NF, BS, CGA, DIN, UNI, ISO, PIN-INDEX), auxiliary outlets and flow scale ranges.
- For oxygen, air, CO2, N20, argon and their mixtures.
- Materials: high-pressure stage in brass (matt chrome-plated), low-pressure in aluminium (matt chrome-plated) and TPE pressure gauge cover.
Optional accessories: consult brochure.
|
FIXED FLOW |
CLICK STYLE FLOWMETER – ADJUSTABLE FLOW | PRESSURE SUPPLY | ||
| Series | FX SERIES | F | F30P1 (1 outlet) and F30P2 (2 outlets) |

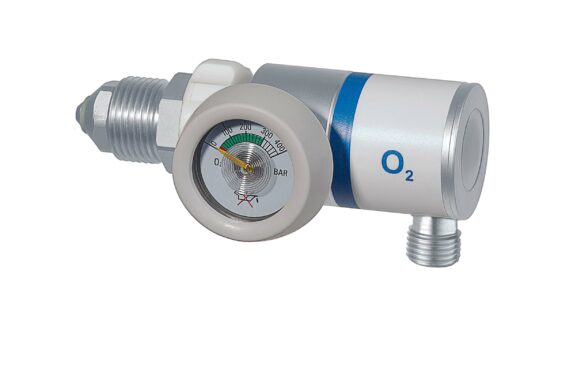

P40 SERIES |
|
Dimensions (mm) and weight (Kg) |
110 X 62 X 58
0.58 (P-300-FX5-NFS model) |
130 X 51 X 58
0.64 (P-300-F15-NFS model) |
130 X 66 X 58
0.65 (P-300-F30P1DIS-NFS model) |
110 X 51 X 58
0.58 (P-300-P40DIS-NFS model) |
| Flow rate accuracy |
± 20% (for flow rates > 1,5 L/min) ± 30% (for flow rates ≤ 1,5 L/min) |
|||
|
Closing pressure |
< 5,5 bar |
|||
