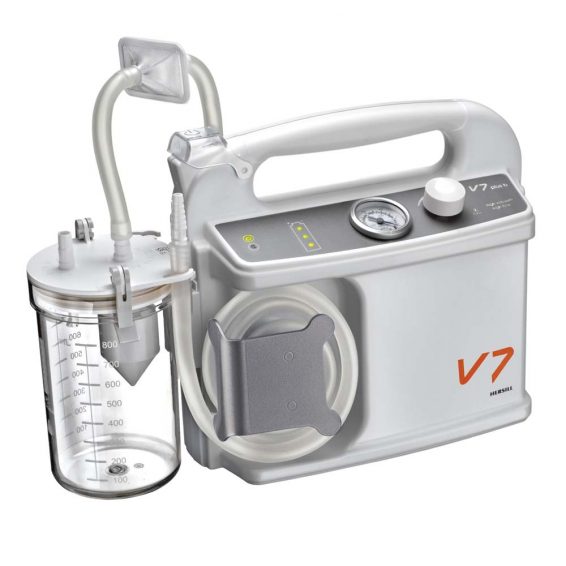

V7 high vacuum

The V7 range of high vacuum portable suction units are ideal for use in healthcare facilities (surgery, gynaecology, ENT), homes, ambulances, transportation and use in emergency situations.

DOWNLOADS:


Description

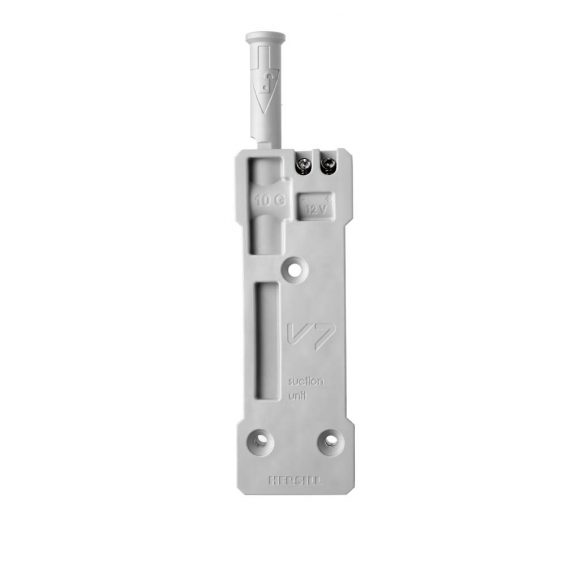

  • ABS ergonomical case and ancorage system tested to 10 g.
  • Long life medical grade piston type suction pump. Oil-free and maintenance-free.
  • Vacuum gauge of 0-100 kPa (0-760 mmHg).
  • Precise and stable vacuum control knob.
  • Indicator lights: ON, flashing, vacuum level, vacuum indicator and battery status.
  • Maximum noise level: 49 + 1,5 dB (depending on model).
  • Battery for long duration autonomy (consult models in which it is included). LED battery level lights.

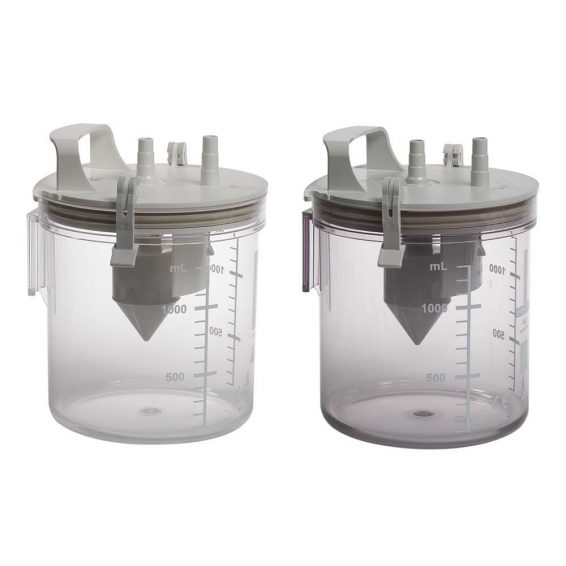

  • Collection jar with overflow safety valve in polycarbonate or polysulfone of 1 L (useful capacity 0.75 L) PC1/PSU1 or 1.75 L (useful capacity 1.30 L) -PC2/PSU2.

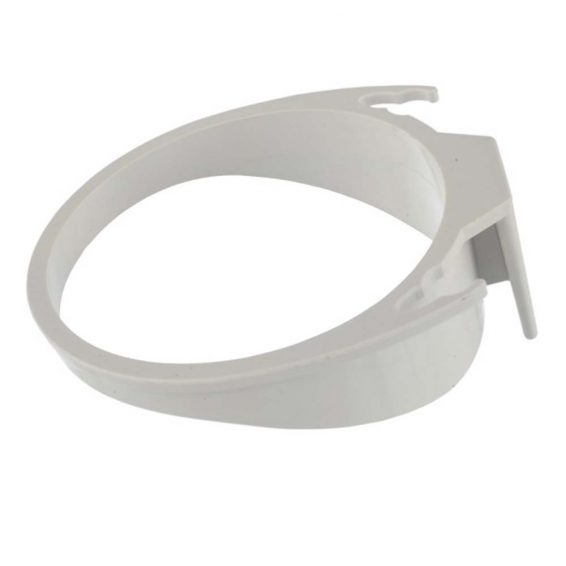

  • Also available with holders compatible with the main disposable canister

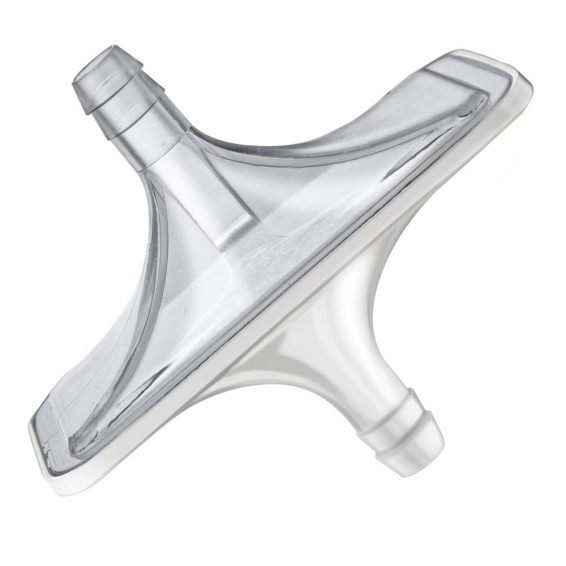

  • Hydrophobic bacteria filter, made of PTFE. With an efficiency of 99% in the retention of particles and bacteria of 99.99%. With PVC suction tube.
  • ON/OFF swith with moisture protection.
  • Equipment dimensions: 385 x 155 x 255 mm.
  • Weight varies between 2.2 Kg and 4.5 Kg (depending on model).

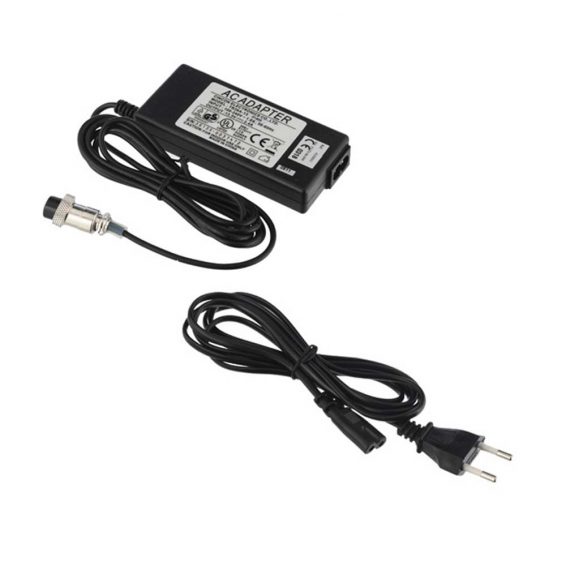

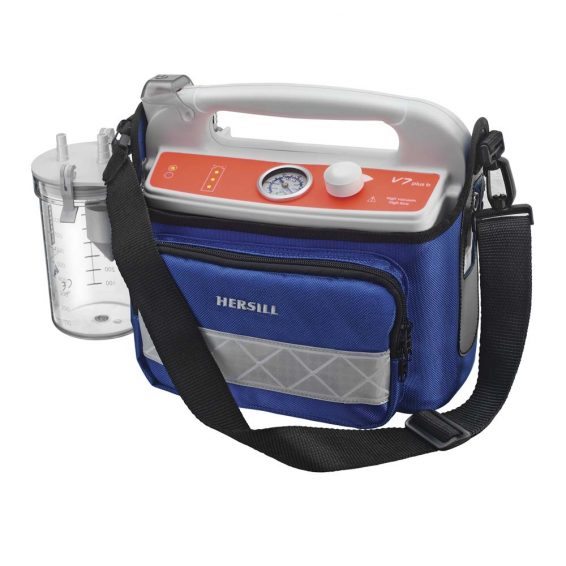

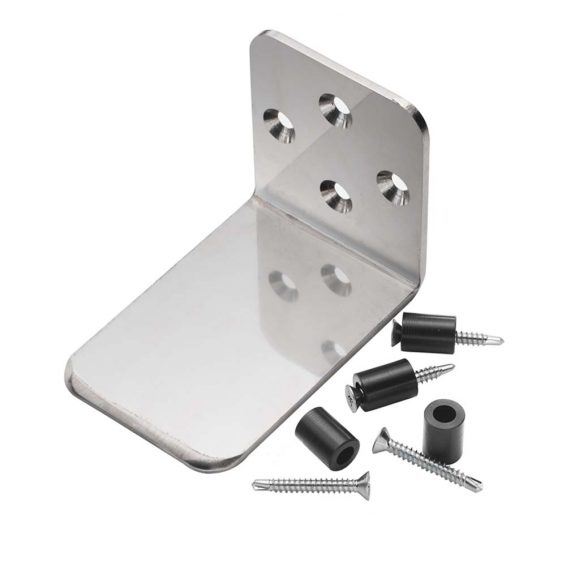

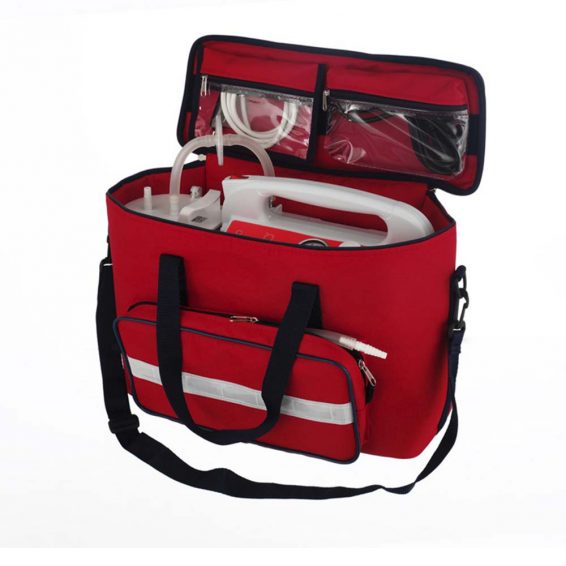

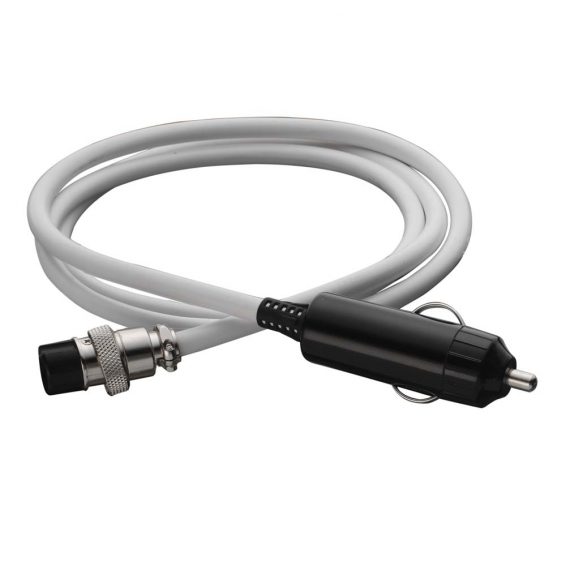

Optional accessories: consult brochure.





Power supply

Flow rate

Maximum vacuum

V7 ac

220 VaC

250 W

20 L/min

80 kPa

600 mmHg

V7 dc

12 VDC

18 W

14 L/min

75 kPa

562 mmHg

V7 plus ac

220 VAC

120 W

30 L/min

84 kPa

630 mmHg

V7 plus dc

12 VDC

85 W

30 L/min

84 kPa

630 mmHg

V7 plus b

12 VDC

85 W

Battery

30 L/min

84 kPa

630 mmHg

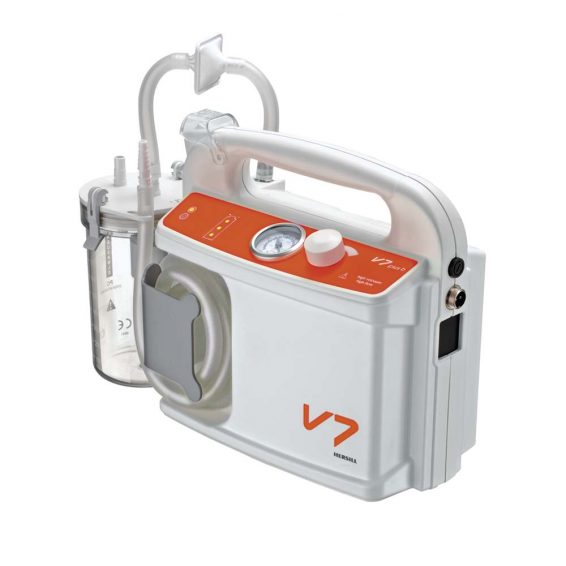

V7 plus b emergency

12 VDC

85 W

Battery

30 L/min

84 kPa

630 mmHg

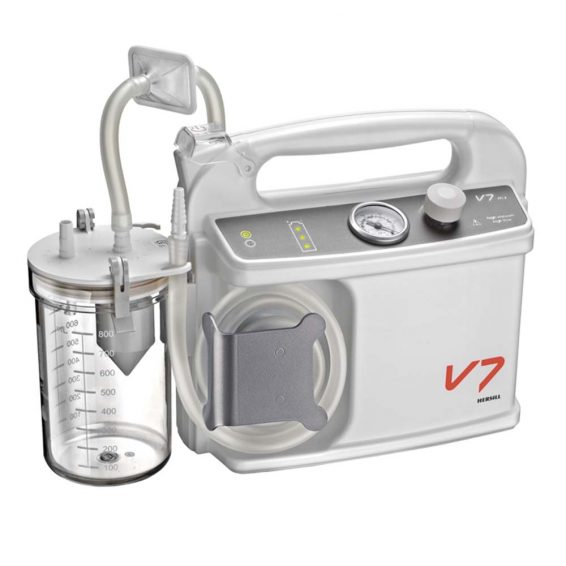

V7 mx

110/240 Vac

12 VDC

160 W (AC) /

84 W (DC)

Battery

30 L/min

84 kPa

630 mmHg
