Vacup

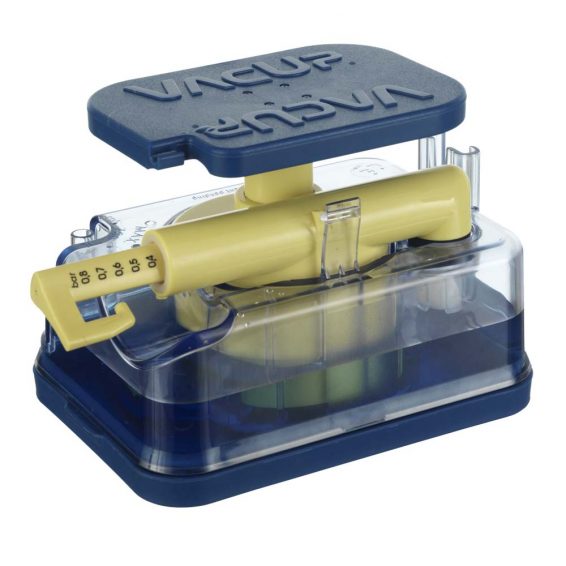

The VacUp® suction foot pedal are operated on the floor, preferably with the foot. Ideal for use as a portable vacuum unit in healthcare facilities (surgery, gynecology, ENT), homes, ambulances, transportation and use in emergency situations.

DOWNLOADS:


Description

  • Intense vacuum from the first compression.
  • Sweep-vacuum gauge with scale indicator (bar, cmHg, kPa).
  • Manual vacuum relief valve (reduced by pressing the bar).
  • High flow (28 L/min at 2 compressions per second, 72 L/min maximum).
  • Constant suction flow from 40 compressions per minute.
  • Tank easy to dismantle with a simple click, easy to clean, reusable and sterilizable in polycarbonate (121 ºC / 250 ºF) and polysulfone (135 ºC / 275 ºF): 650 mL  useful capacity with overfilling valve. Disposable tank available.
  • 1.5 m suction hose (internal Ø 8 mm) with 2 nozzles of internal diameter 5 and 7 mm.
  • Two models: VacUp® Pro with polycarbonate tank and PVC suction hose. VacUp® elite with polysulfone tank and silicone hose.

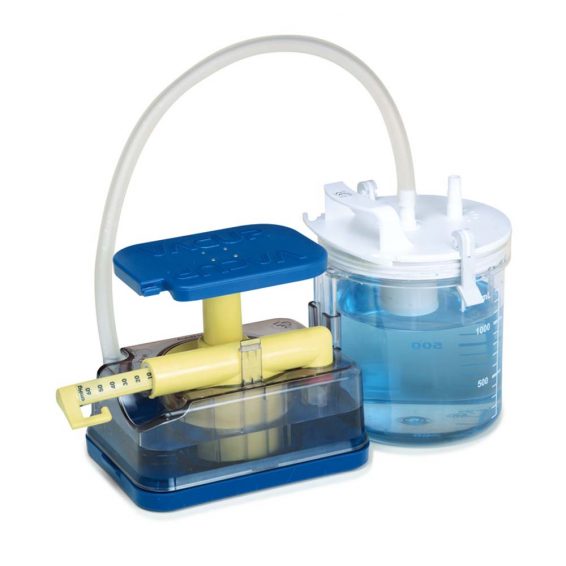

  • Great versatility: it can be used together with a 1.7 L auxiliary collection jar (with a useful capacity of 1.3 L) as well as with obstetric suction cups.
  • Materials: PC vacuum pump, Tecnopor filter, TPE gasket and tank cover.
  • Equipment dimensions: 180 x 130 x 110 mm.
  • Weight: 850 g.

Optional accessories: consult brochure.



Maximum vacuum

-82 kPa

-615 mmHg

-0,82 bar

Air flow with two pedal movements per second

28 L/min

Air flow for maximum movement frequency

72 L/min

Storage temperature

-40 ºC a 70 ºC

Operating temperature

-20 ºC a 50 ºC
