Suction jars

The suction jars or collection bottles are used to collect all types of secretions originated by medical suction: liquids, secretions and mucus. They are the perfect complement to be used with any suction equipment.

DOWNLOADS:

Categories: ,

Description

  • Manufactured in polycarbonate (PC) and polysulfone (PSU).
  • Sterilizable in autoclave at 121 ºC (250 ºF) in PC and 135 ºC (275 ºF) in PSU.
  • Two nipple connections with hose outlet. They can be used as a drainage system next to a water column or water manometer regulator of 0-30 cmH2O.

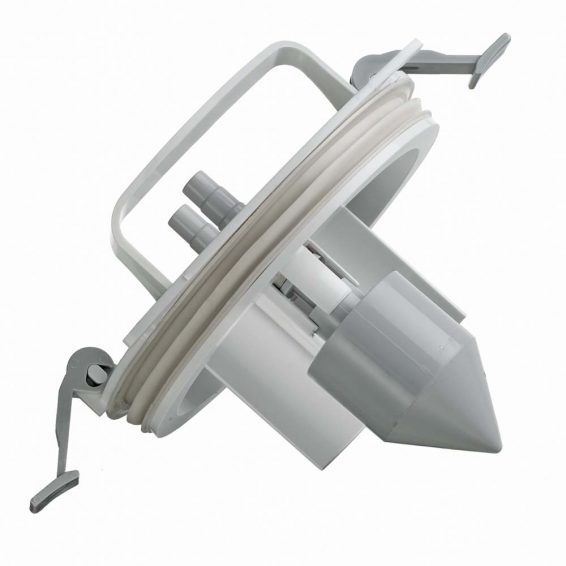

  • Lid with anti-overflowing safety system (float) and handle for easy transport.
  • Jar with integrated moulded wall support, trolley and rail clamp EN ISO 19054:2005.
  • The DISS suction jars are connected to the vacuum regulator via a DISS adapter.
  • Materials: jar and lid in polycarbonate or polysulfone, lid gasket in Evoprene, locking crab in polysulfone and float assembly in polysulfone and silicone. Aluminium DISS connection adapter. Latex-free.

Optional accessories: consult brochure.



Capacity

Scale up to

Dimensions

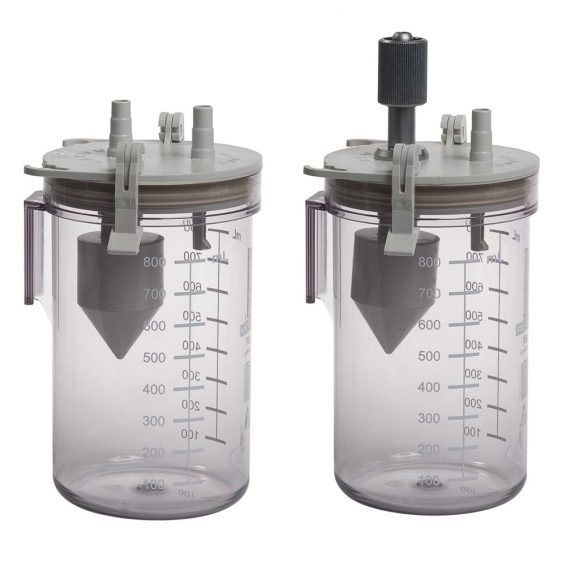

PC1 /

PC1 DISS

polycarbonate

1 L

0.750 L

Ø 10.5 cm x 16.5 cm

PSU1 /

PSU1 DISS

polysulfone

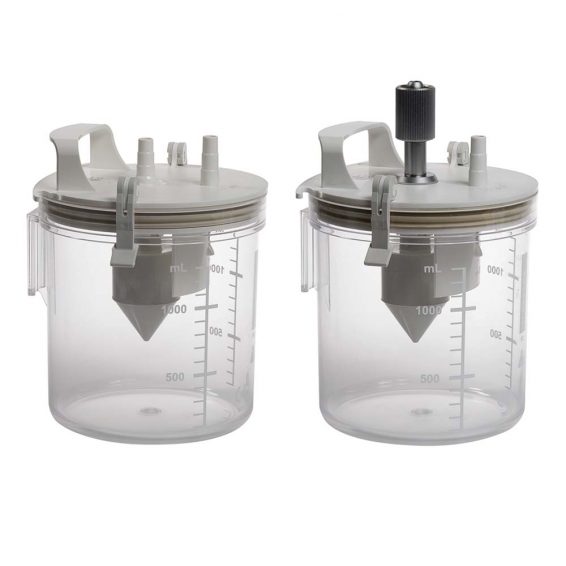

PC2 /

PC2 DISS

polycarbonate

1.75 L

1.30 L

Ø 14 cm x 14.5 cm

PSU2 /

PSU2 DISS

polysulfone

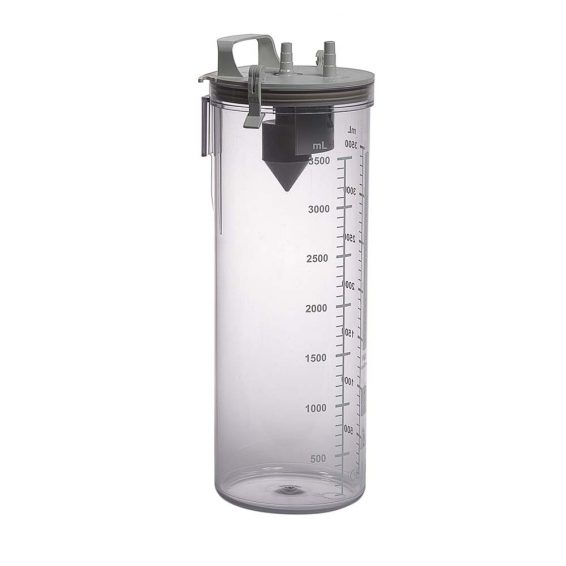

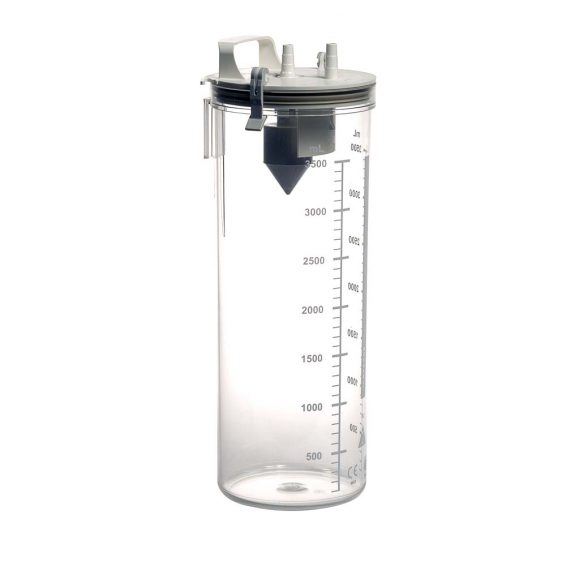

PC4 /

PC4 DISS

polycarbonate

4 L

3.50 L

Ø 14 cm x 35 cm
